API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing
Detalhes do produto:
| Lugar de origem: | China |
| Certificação: | API |
| Número do modelo: | Cortador de caixas |
Condições de Pagamento e Envio:
| Quantidade de ordem mínima: | 1 unidade |
|---|---|
| Preço: | USD800-5000/pc |

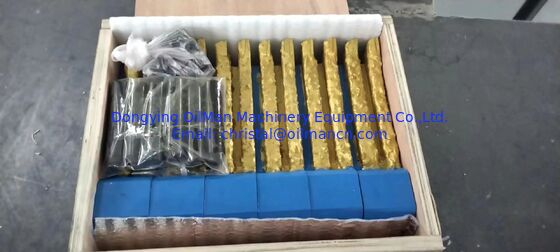

| Detalhes da embalagem: | Exportar caixa de madeira |
| Tempo de entrega: | 15-25 dias úteis |
| Termos de pagamento: | T/T, Western Union, Moneygram |
| Habilidade da fonte: | 500 peças por mês |
|
Informação detalhada |
|||
| Nome do produto: | Cortador de revestimento marítimo padrão API/cortador de revestimento interno mecânico para tubo de | Palavras-chave: | Cortador de caixas |
|---|---|---|---|
| Material: | Aço alto de manganês | Tipo de processamento: | Forjamento |
Descrição de produto
API Standard Marine Casing Cutter/Mechanical Internal Casing Cutter for Tubing Drill Pipe and Casing

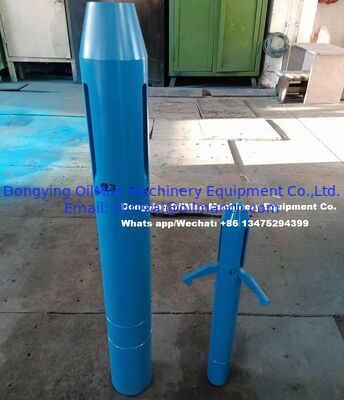

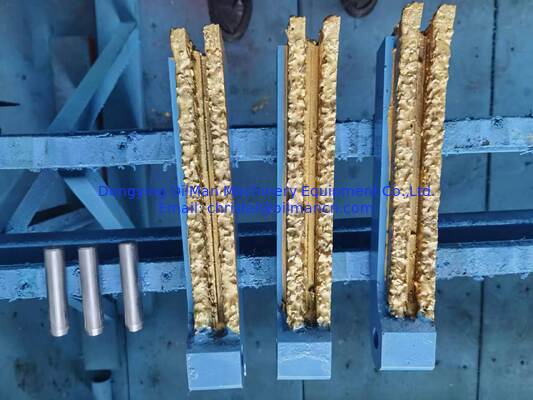

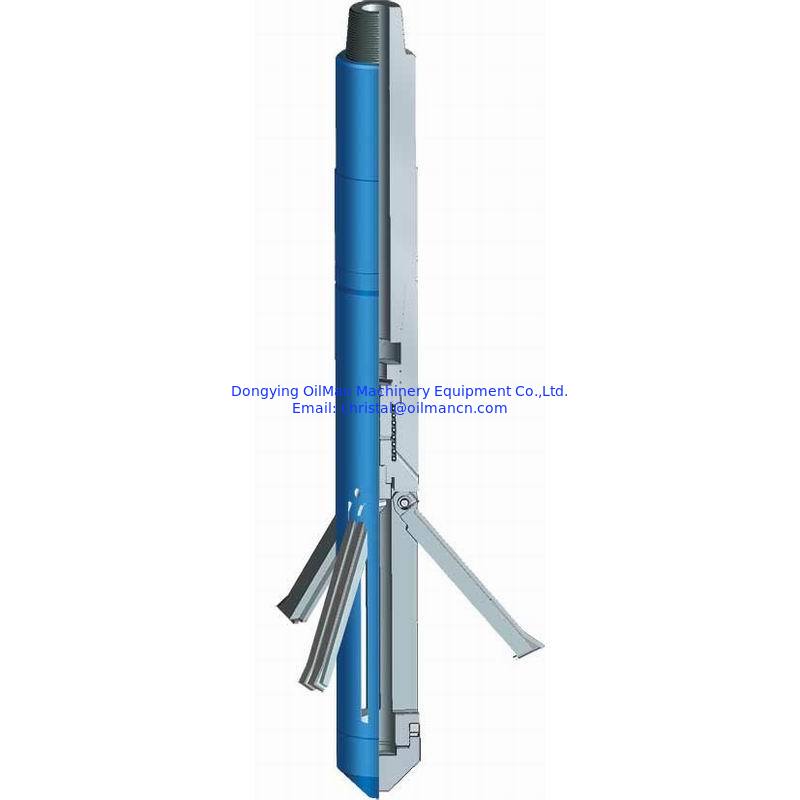

Marine casing cutter is one of tools which cuts the casing internally. It uses water horse power to drive cutters work, it has reasonable structure and convenient maintenance, faster cutting speed. When cutting multi-layer non-concentric casings, it could bear strenuous vibration. Strong cutter arms can extend to 5 times as much as body diameter, so as to get maximum stability performance under various adverse cutting condition( including hard point, decentration, discontinuous cutting etc).
Mechanical internal casing cutter is a tool which is used for cutting downhole fixed(or stuck) pipe from inner of casing, it can work at any place except joint and coupling.
Marine Casing Cutter Technical Parameters
| Model | Body OD | Casing Size | Connection |
| mm (inch) | inch | ||
| GD111 | 111(4-3/8) | 5-1/2~9-5/8 | 2-7/8REG |
| GD146 | 146(5-3/4) | 7~16 | 3-1/2REG |
| GD203 | 203(8) | 9-5/8~30 | NC50 |
| GD238 | 238(9-3/8) | 10-3/4~36 | 6 5/8REG |
| GD298 | 298(11-3/4) | 13-3/8~60 | 6 5/8REG |
Mechanical Internal Casing Cutter Technical Parameters
| Model | Cutter OD | Casing/Tubing Size | Cutting Thickness | Connection |
| mm (inch) | inch | mm | ||
| ND73 | 57(2-15/64) | 2 7/8 | 5.5 | 1.9TBG |
| ND89 | 67(2-41/64) | 3 1/2 | 6.5 | 1.9TBG |
| ND102 | 85(3-11/32) | 4 | 5.7~6.7 | 2-3/8TBG |
| ND114 | 89(3-1/2) | 4 1/2 | 7.4~10.9 | 2-3/8TBG |
| ND127 | 102(4-1/64) | 5 | 5.59~11 | 2-7/8REG |
| ND140 | 120(4-23/32) | 5 1/2 | 7~9.2 | NC31 |
| ND168 | 149(5-7/8) | 6 5/8 | 7.3~8.9 | NC38 |
| ND178 | 146 (5-3/4) | 7 | 5.87~13.72 | 4-1/2REG |
| ND244 | 212(8-11/32) | 9 5/8 | 7.92~13.84 | 6-5/8REG |
| ND340 | 295(11-39/64) | 11 3/8 | 8.38~12.19 | 6-5/8REG |
If any needs, pls contact us freely:
